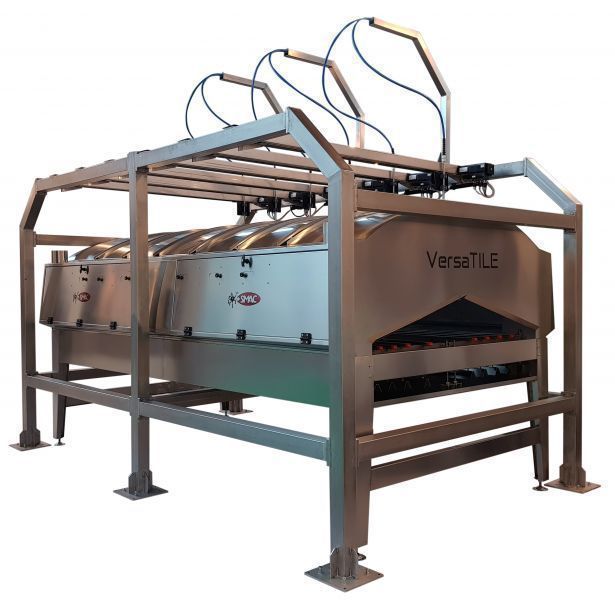

VERSATILE/PLUS


Latest generation movable airless system with independent movements. Ideal for the application on ceramic slabs and for high production lines. VERSATILE/PLUS is equipped with independent movement of each upper spray-gun, complete of high speed motors, linear axes and independent support frame. Available from 4 to 8 spray-guns with feeding by high pressure pump.
All the systems are equipped with control panel with HMI touch-screen for production recipes setting and stainless steel booth with standard or deep bottom collecting tank, complete of lateral doors, over-spray nets and belts supports.

Watch the video on Smac YouTube channel: VERSATILE PLUS - MOVABLE AIRLESS SYSTEM(click here)VERSATILE/PLUS 6 SPRAYGUNS(click here)

Technical specifications

- independent support frame;
- nr.04/06/08 high precision linear guides for horizontal translation;
- nr. 04/06/08 high speed brushless motors;
- control panel with PLC and color touch screen;
- operator panel with production recipe setting;
- available for sizes up to 2000 mm wide.
