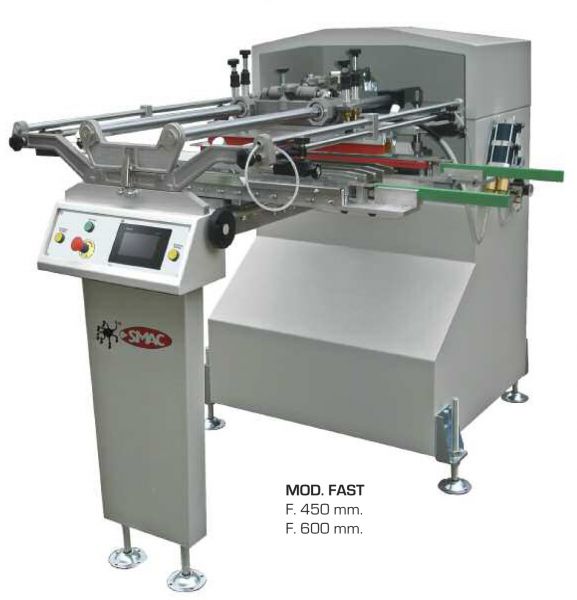

FLAT PRINTING MACHINE MOD.FAST

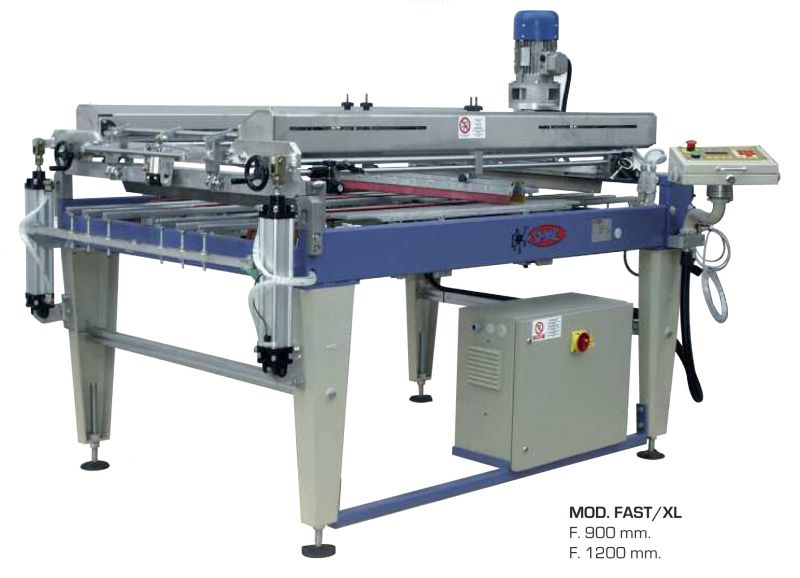

Flat printing machine for the decoration of single firing, double firing, monoporosa and porcelain tiles ,controlled by electronic system PLC of last generation, control panel with touch screen and with feeding pump included. For sizes up to 470x470mm, 660x660mm, 900x900mm e 1200x1200mm..
Technical specifications
- advance of the pieces through lateral bands controlled by step motors;
- new electronic system for decoration centering, even in case of burdocks and irregulars edges;
- electric board with protection IP 64
- Iper focus tile's reading system with two lateral photocells
- pneumatic screen blocking device
- steel bar carriage in AC 40

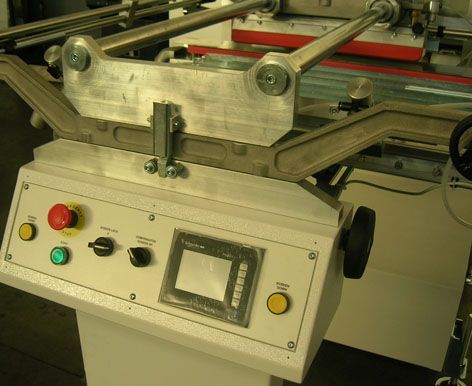

- all operating controls and setup are in the box front, and convenient location with excellent visibility and all parameters are accessible through touch-screen terminal large (3.8 ") and available in the language of the operator.
- spatulas carriage controlled by Inverter
- new electronic system for decoration centering, even in case of burdocks and irregulars edges;
- electric board with protection IP 64
- Iper focus tile's reading system with two lateral photocells
- pneumatic screen blocking device
- steel bar carriage in AC 40
- all operating controls and setup are in the box front, and convenient location with excellent visibility and all parameters are accessible through touch-screen terminal large (3.8 ") and available in the language of the operator.
- spatulas carriage controlled by Inverter
