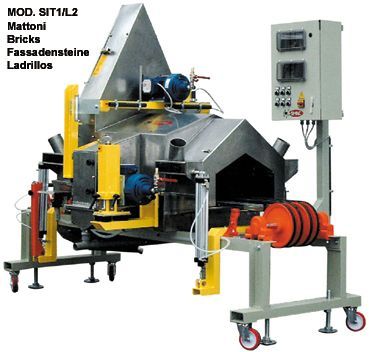

SIT/1 L2
Booths with 3 discs, for uniform glazing/engobing of top, sides and underpart of bricks with adjustable discs. Completely openable easy washing and available trolley mounted and built to be rapidly fitted into glazing line.
Technical specifications
SPECIAL DEVICE FOR THE AUTOMATIC CLEANING OF THE BOOTHS. COMPOSED OF:
high pressure electric pump; rotating nozzles pneumatically moved; electric board with PLC and photocell; set of solenoid valves for the control of the water/glaze passage. The device allows to effect the automatic cleaning, creating the necessary space on the glazing line. The cleaning of the booths can be effected manually, by means of a button pushed by an operator, or automatically, every "x" minutes/hours. During the cleaning the discharge water is automatically conveyed into a separated tank or into the discharge channel.
