Officine Smac S.p.A.

REVERSO

03.03.2021

Reverso is a roller decorating machine for printing and applying engobe to the reverse side of tiles as they proceed along the glazing line. This application prevents contamination due to direct contact between the tile and the ceramic rollers in the kiln during firing.

Incorrect or nonuniform application of these products may result in serious damage, including rapid deterioration of the ceramic rollers, deformation of tile flatness and undesirable accumulation of tiles inside the kiln.

These issues are often timeconsuming and costly to resolve, resulting in severe delays and production losses.

Thanks to the laserengraved silicone roller application system, Reverso ensures perfect and uniform engobe application to the rear face of the tiles with the possibility of controlled application weights. It avoids all product wastage, does not contaminate the tile edges and is able to print logos and other designs.

Available for sizes up to 1800 mm wide, it uses silicone cylinders with lengths from 1020 mm to 2200 mm.

Machine characteristics:

independent supporting frame with adjustable feet;
device for rapid assembly/disassembly of the engraved silicone roller;
independent blade groups with adjustable height, inclination and angle of incidence;
registers to adjust contact between the silicone roller and the tiles;
invertercontrolled gear motor for regulating the speed of rotation of the roller as the tile advances;
automatic management of the rotational speed;
automatic printhead ascent/descent device controlled by a photocell for flow control;
lower stainless steel tank for excess glaze recovery;

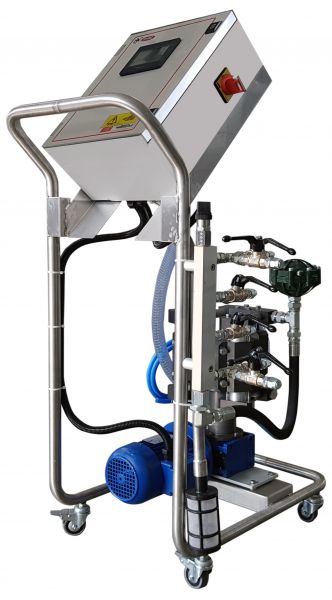

feeding group complete with pneumatic pump with pausework management;
double blade group feeding device;
silicone roller with various mask type special engravings;
electrical panel complete with inverter, general controls, encoder, flow control photocell, pump management and onboard plant.

youtu.be/n3iIl6pZOYI

CFI GLOBAL NEWS: THE DSR MACHINE

16.06.2020

What is DSR and how does it work?

CFI Ceramic Forum International, technical-scientific journal for the ceramics industry, presents our machine for the dry application of grits, frits and powders, describing the full operation.

The article is on the front pages, on Global News section.
